Yh yx11A buoy type oxygen inhalator
Yh yx11A buoy type oxygen inhalator
Yh yx11A buoy type oxygen inhalator
Yh yx11A buoy type oxygen inhalator
Yh yx11A buoy type oxygen inhalator
Yh yx11A buoy type oxygen inhalator
Yh yx11A buoy type oxygen inhalator

Yh yx11A buoy type oxygen inhalator

Model NO.:
yh yx11A
Price:
USD 5.10-8.80 / pieces
Delivery:
FOB
Minimum order quantity:
300 pieces
Supply Ability:
3000 pieces / Day
Country of Origin:
Qingdao,Shanhai
  • Place of Origin:CN;SHN
  • Brand Name:Lishan
  • Model Number:yh yx11A
  • Model:yh yx11A
  • Name:portable oxygen inhaler
  • Diameter (L * H * W):195*325*125mm
  • Weight:965g
  • Rated input pressure P1 MPa:15
  • Rated output pressure P2 MPa:0.2
  • Material:Copper, zinc alloy
  • Country of origin:Shandong,China

Yh yx11A buoy type oxygen inhalator










Product Description

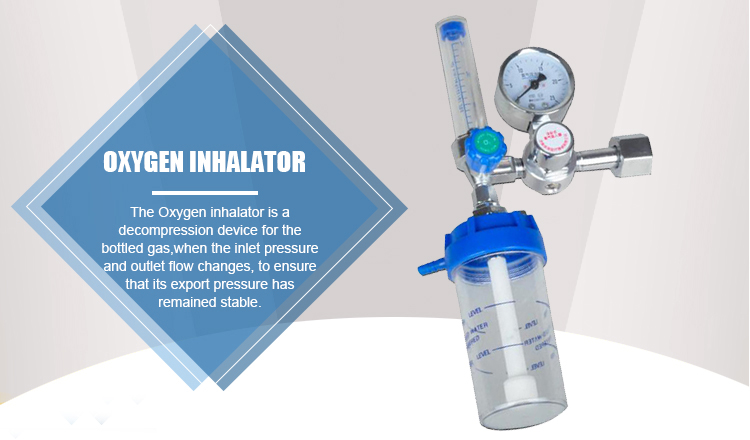

The oxygen inhaler is a decompression device for the bottled gas,when the inlet pressure and outlet flow changes, to ensure that its export pressure has remained stable.





Model

yh yx11A

Name

Oxygen inhaler

Diameter (L * H * W)

195*325*125mm

Weight

965gg

Rated input pressure P1 MPa

15

Rated output pressure P2 MPa

0.2

Output flow L/min

0-10

Material

Copper, zinc alloy

Country of origin

Shandong,China

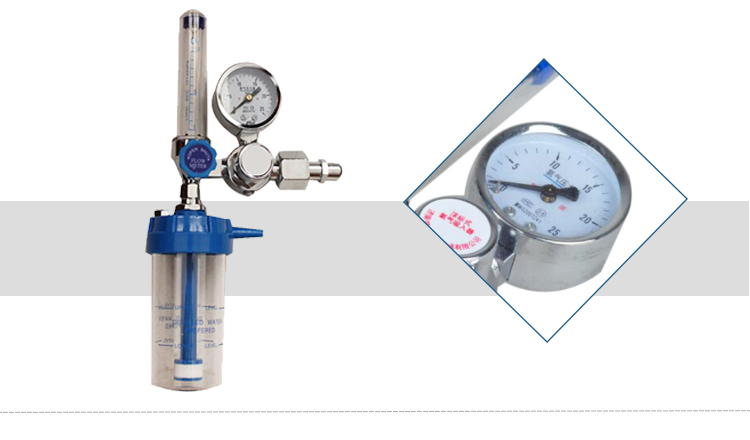

The high pressure gauge shows the inlet pressure and the low pressure gauge shows the outlet pressure,an increase in the value of the low pressure gauge may indicate a potential hazard or hazard.



The safety valve is a pressure-releasing device to ensure the safe use of the gas cylinder regulator,and a signal device in which the regulator is defective.When the output pressure  is more than 1.3 times to 2 times of the rated output pressure,the safety valve will open automatically and exhaust.



Adjusting screw is mainly used to adjust the outlet pressure.When properly installed the gas cylinder regulator in the cylinder valve and open the cylinder valve,turn the adjusting screw in a clockwise direction,when the work is stopped, the adjusting screw can be loosened, so that adjustment spring back to free state.



Flowmeter type regulator,the regulator and the flowmeter are designed as a one-piece structure with compact structure,the main function of the flow tube is to test the flow of gas pressure, there are argon flowmeter-type regulator, co2 flowmeter-type regulator produced by our company.

1 (4).jpg


Oxygen inhaler is mainly used for medical center oxygen supply system, to provide continuous constant pressure and flow of oxygen.




Product Lisiting



Our pressure gas cylinder regulator can be divided into oxygen cylinder regulator, acetylene cylinder regulator, nitrogen cylinder regulator, argon cylinder regulator, carbon dioxide cylinder regulator and propane cylinder regulator.

Product precautions

(1)Before use should confirm the cylinder regulator is intact and if there is oil pollution, if the thread is damaged.
(2)Attach the gas cylinder regulator to the cylinder valve and tighten the input and output connectors.
(3)Before open the gas cylinder valve,turn the adjusting screw of the regulator in a counter-clockwise direction until the adjusting spring from pressure.
