- Place of Origin:CN;SHN
- Material:Brass
- Brand Name:lishan
- Model Number:QF-2P
- Power:Manual
- Pressure:High Pressure
- Application:General
- Port Size:PZ27.8
- Standard or Nonstandard:Standard
- Media:Gas
- Structure:Other
- Temperature of Media:Other

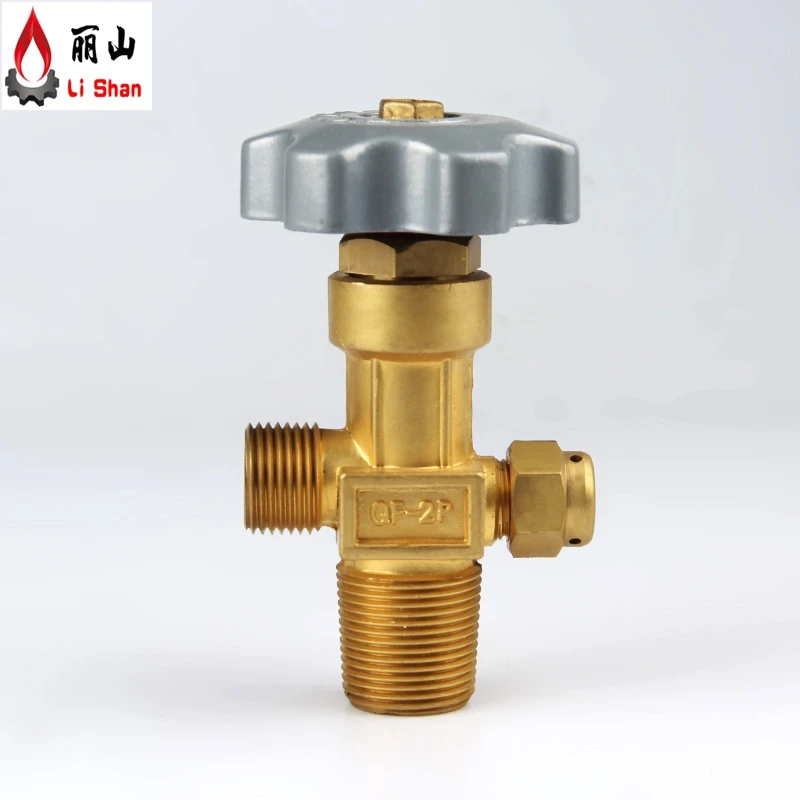

QF-2P with Safety Oxygen Cylinder Valve 150bar Working Pressure
QF-2P cylinder valve
Type | Service Medium | Description | working pressure (bar) | DN (mm) | Qutlet thread (mm) | Inlet thread (mm) | Safety device (MPa) |
| QF-2P | O2,Air,N2 | oxygen cylinder valve | 150 | 4 | W21.8X1/14 | GB8335 PZ27.8 | 21±1.5 |
Seamless steel cylinder using advanced technology,through the national certification,in line with international quality standards and safety standards,is widely used in various fields such as industry,laboratory research,medical treatment etc
Oxygen bottle Model | 40L | 15L | 14L | 10L | 8L | 4L |
Height | 1450mm | 956mm | 900mm | 710mm | 540mm | 480mm |
Diameter | 219mm | 159mm | 149mm | 152mm | 152mm | 130mm |
Wall thickness | ≥5.7mm | ≥4.2mm | ≥4.2mm | ≥4.0mm | ≥4.0mm | ≥3.6mm |
Valve | QF-2 | |||||
material | 37Mn | |||||
Ambient temperature | -20~60°C | |||||
Nominal working pressure | 15MPa | |||||
Hydraulic test pressure | 22.5MPa | |||||
Airtight test pressure | 15MPa | |||||
Filling media | oxygen | |||||
Permanent gas | High pressure liquefied gas | |||||
