- Pressure:High
- Place of Origin:CN;SHN
- Material:Steel
- Use:Oxygen
- Brand Name:lishan
- Color:as your request
- Water Capacity:10L
- height:956mm
- Weight:13.5kg
- Outside Diameter:140mm
- Service Pressure(Bar):150
- Test Pressure(Bar):250
- Thickness:4.1mm
- material:seamless steel

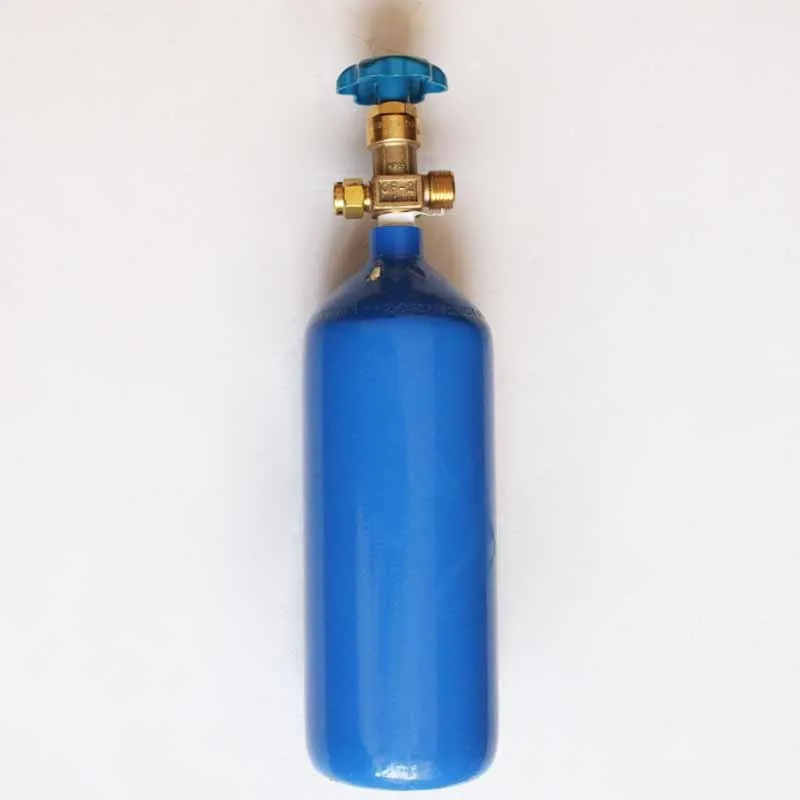

- Name:Oxgen Gas Cylinder
Seamless steel 40 L industrial gas cylinders portable using advanced technology, through the national certification, in line with international quality standards and safety standards, is widely used in various fields such as industry, laboratory research, medical treatment etc.
Oxygen bottle model | 40L | 15L | 14L | 10L | 8L | 4L |
Height | 1450mm | 956mm | 900mm | 710mm | 540mm | 480mm |
Diameter | 219mm | 159mm | 149mm | 152mm | 152mm | 130mm |
Wall thickness | ≥5.7mm | ≥4.2mm | ≥4.2mm | ≥4.0mm | ≥4.0mm | ≥3.6mm |

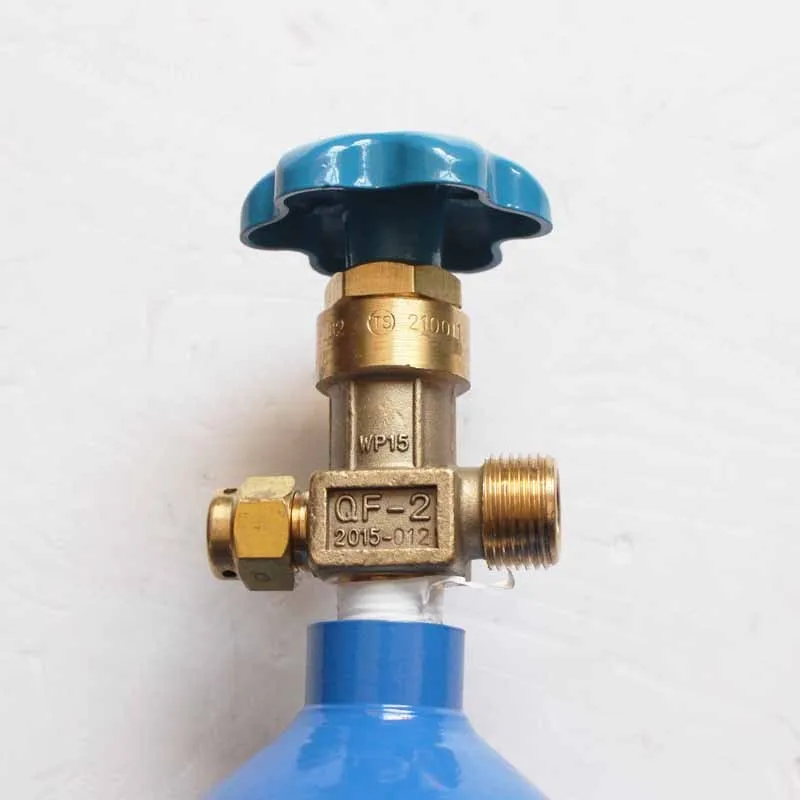

Valve | QF-2 | |||||
Material | 37Mn | |||||
Ambient temperature | -20~60℃ | |||||
Nominal working pressure | 15MPa | |||||
Hydraulic test pressure | 22.5MPa | |||||
Airtight test pressure | 15MPa | |||||
Filling medium | Oxygen | |||||
Permanent gas | High pressure liquefied gas | |||||
We will supply customized valves, stampings, words on cylinders. Different purity gases can be supplied with the cylinders together.

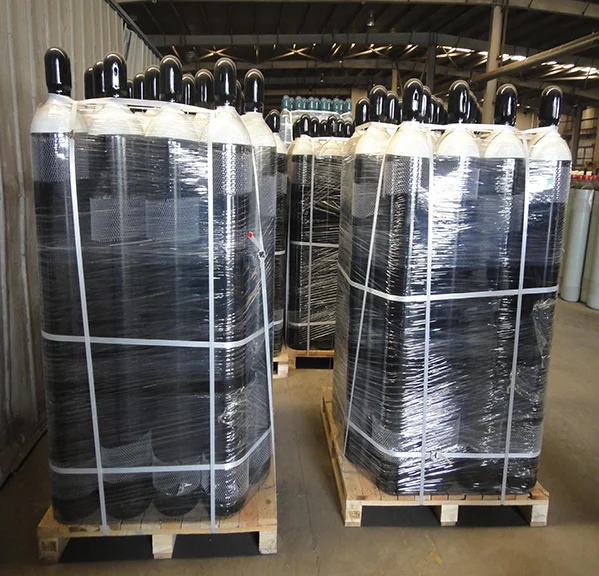

1. Nude packing with protection nets
2. packed in wooden pallets
We are committed to providing the best service!
We can also customize for you.
If you are interested in our products or you have any ideas about us, please feel free to contact us and we will make sure all your approaches will be dealt with professionally and promptly!
Q: What is the capacity of Oxygen Cylinder?
A: Our capacity of Oxygen Cylinder is from 0.22L to 80L.
Q: What kind of Oxygen Cylinder do you have?
A: Our Oxygen Cylinder is including Seamless Steel cylinder, Aluminum Cylinder, Glass fiber cylinder and liquid Co2 cylinder.
Q: What about the working pressure?
A: It is about 150bar, 200bar, 300bar. We also have non-standard pressure.
Q: What about the delivery time?
A: It generally will take us 25-30 days to finish the order.
Q: How will you send the products to us?
A: We have our shipping forwarder to transport the cylinders to every corner of the world by SEA/AIR/TRUCK
