Model NO.:
LS-AC40
Price:
USD 40.00-70.00 / pieces
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
2000 pieces / Day
Country of Origin:
QINGDAO
Quantity:
  • Pressure:High
  • Place of Origin:CN;SHN
  • Material:Steel
  • Use:Acetylene
  • Model Number:LS-AC40
  • Brand Name:lishan
  • Name:acetylene gas cylinders
  • Nominal volume:40L
  • Color:as required
  • Gas cylinders height:1030mm
  • Cylinder weight:42KG
  • Diameter:232mm
  • Filling pressure:1.56MPa
  • Main material:Hp295
  • Pressure:high
  • Certification:ISO
Product Description

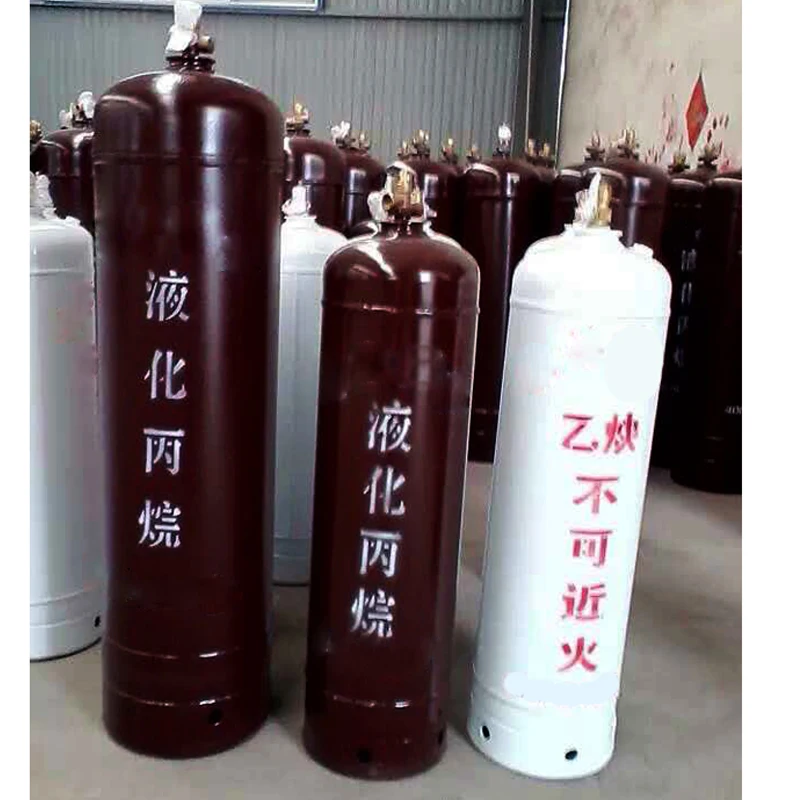

 acetylene gas cylinders



 Acetylene cylinders are special pressure vessels with fillers for storing and transporting acetylene.The shape is similar to oxygen cylinder, the surface is painted with white, and the word"acetylene"is written in red paint.The acetylene cylinder contains a porous filler immersed in acetone, which enables the acetylene to be stored safely in the cylinder.When used, the acetylene dissolved in acetone is separated into a gas, and the acetone remains in the bottle for the purpose of reloading the acetylene for use





Acetylene bottle model

40L

Height

1030mm

Diameter

250mm

Wall thickness

4.0mm

material

Hp295

Fillingpressure

1.56Mpa

Filling media

 acetylene gas







 800-4



40L























Use of gas cylinders:



The user shall abide by the gas cylinder and gas use management system and safe operation rules, and conduct safety technical education to operators.



Do not knock or bump in use.When the bottle valve is frozen, do not bake with fire, do not approach the heat source, and the distance from the open fire shall not be less than 10m.



When using acetylene bottle and oxygen bottle at the same time, the distance between the two bottles should not be less than 5m, pay attention to the fixation, prevent dumping, do not put the use of horizontal.The gas in the bottle shall not be used cleanly, and the residual pressure gas above 0.05mpa shall be left.



Special pressure reducer and tempering preventer must be used.When opening, the operator should stand behind the side of the valve, the action should be slow, not too fast.



It is strictly forbidden to be placed in a place with poor ventilation. It should be placed directly on the ground. It should not be placed on rubber or other insulators to prevent electrostatic fire.



















Attention should be paid to:



1. The place of acetylene bottle shall not be close to heat source and electrical equipment, and the distance from open flame shall not be less than 10m;

2. Use upright;

3. Do not place in the place with poor ventilation or radioactive source;

4. It is strictly prohibited to strike or collide, arc start or place on the insulator;

5. Do not expose to the sun. Do not heat the bottle with a heat source above 40 degrees Celsius.

6. Acetylene and oxygen cylinders are placed on the same trolley, isolated with non-combustible materials;

7, equipped with special pressure reducer and tempering prevent device;It is forbidden to open and close acetylene cylinders with lighted welding tools.

8. Promptly deal with any leakage found in the use of acetylene bottle;













Certifications

2222









Company Information





Linyi Lishan Electromechanical Equipment Co., Ltd. was established in 2009, located in the logistics capital of China -Linyi City, Shandong Province. It is a key enterprise specialized in  welding and cutting equipment, high-pressure gas cylinders and valves, and gas regulators. There are more than 10 product series and more than 100 varieties, such asdissolved acetylene cylinders, propane cylinders, cylinder valves, high-pressure valves, gas pipeline valves, gas regulators and other main products. Which are widely used in chemical, hospital metallurgy, hydropower, coal machinery and other industries.










Our Services



Good Service

We are committed to providing the best service!



And we can also customize for you.



If you are interested in our products or you have any ideas about us, please feel free to contact us and we will make sure all your approaches will be dealt with professionally and promptly!





FAQ



Q: What is the capacity of Oxygen Cylinder?

A: Our capacity of Oxygen Cylinder is from 0.22L to 80L.

Q: What kind of Oxygen Cylinder do you have?

A: Our Oxygen Cylinder is including Seamless Steel cylinder, Aluminum Cylinder, Glass fiber cylinder and liquid Co2 cylinder.

Q: What about the working pressure?

A: It is about 150bar, 200bar, 300bar. We also have non-standard pressure.

Q: What about the delivery time?

A: It generally will take us 25-30 days to finish the order.

Q: How will you send the products to us?

A: We have our shipping forwarder to transport the cylinders to every corner of the world by SEA/AIR/TRUCK
