The QF-15A Valve for cylinder

Model NO.
QF-15A
Delivery:
FOB
Quantity:
  • Type:Gate Valves
  • Type:Washing Machine Valves
  • Type:Water Heater Service Valves
  • Type:Instrument Manifold Valves
  • Type:Safety Relief Valves
  • Type:Adjustable Relief Valves
  • Application:General
  • Temperature of Media:Normal Temperature
  • Power:Hydraulic
  • Media:Gas
  • Structure:Safety
  • Place of Origin:CN;SHN
  • Brand Name:lishan
  • Model Number:QF-15A
  • Port Size:Diameter21clip
  • Standard or Nonstandard:Standard
  • Nominal working pressure:3Mpa
  • Nominal diameter:4mm
  • Outlet thread:Diameter21clip
  • Inlet thread:PZ39
  • Medium:acetylene
  • Safety device:0.4MPa 95℃±5℃

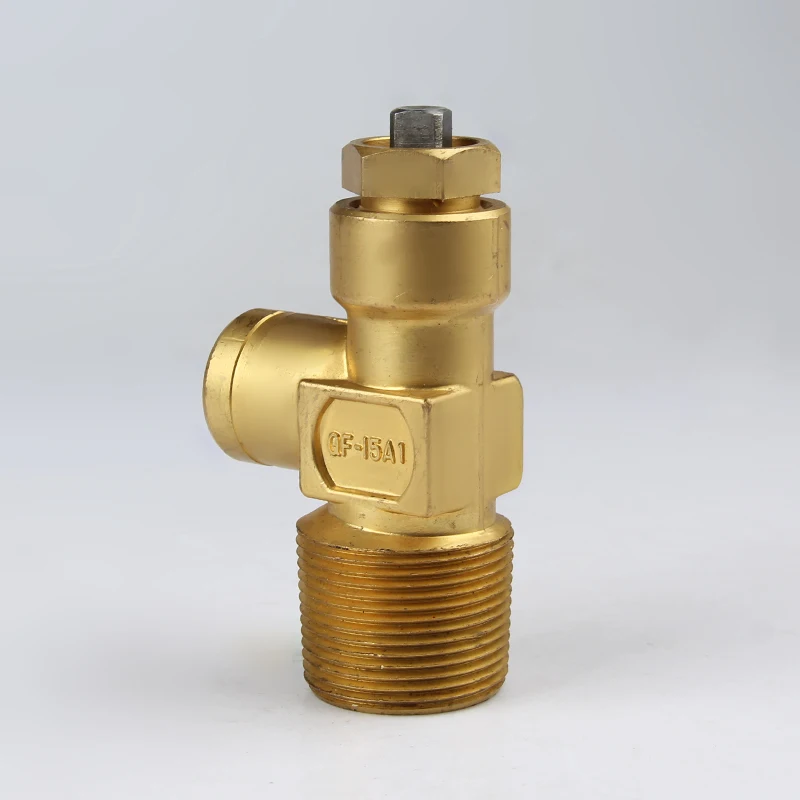

QF-15A Cylinder valves



29 (2).JPG







Product Description

The cylinder valve is made of brass or steel,which is the equipment to control the ingress and egress of oxygen gas with high pressure resistance and high safety performance .



Model

QF-15A

 working pressure

3Mpa

Nominal diameter

4mm

Outlet thread

Diameter21 clip

Inlet thread

PZ39

Applicable medium

acetylene

Safety device

0.4MPa 95℃±5℃






Product Lisiting



Our gas cylinder valve can be divided into oxygen cylinder valve, acetylene cylinder valve, nitrogen cylinder valve, argon cylinder valve, carbon dioxide cylinder valve and propane cylinder valve.
