40L high quality seamless steel oxygen gas cylinder price
40L high quality seamless steel oxygen gas cylinder price
40L high quality seamless steel oxygen gas cylinder price
40L high quality seamless steel oxygen gas cylinder price
40L high quality seamless steel oxygen gas cylinder price

40L high quality seamless steel oxygen gas cylinder price

Model NO.:
2L-50L
Price:
USD 20.00-100.00 / pieces
Delivery:
FOB
Minimum order quantity:
50 pieces
Supply Ability:
5000 pieces / Month
Country of Origin:
Qingdao
Quantity:
  • Pressure:High
  • Place of Origin:CN;SHN
  • Model Number:2L-50L
  • Brand Name:YA
  • Material:37Mn or 34CrMo4
  • Use:manufacturing or medical industry
  • product Name:seamless cylinder medical oxygen cylinder
  • Water Capacity:2L-40L
  • Outside Diameter:108mm,140mm,152mm,219mm,232mm
  • Wall Thickness:2.9mm,4.1mm,4.4mm,5.2mm,5.3mm,5.4mm,5.7mm,5.8mm,6mm
  • Height:310mm~1450mm
  • Weight:3.6kg~60kg
  • Working Pressure:150bar / 200bar
  • Test Pressure:250bar/300bar
  • Standard:ISO9809-3/ISO9809-1
  • Color:green,black,white,blue,yellow or customized

Product Description------------------------------------------------------------------------------------------------------

Gas cylinders can be made of aluminum,steel,alloys and composite materials.Mechanical strength, corrosion resistance and impact resistance are the key factors in determining which material to use.Carbon fiber has high tensile strength, and carbon fiber composite cylinders will be very light, but more difficult to manufacture. Many countries regions use different color coding systems to classify different gases and cylinder types.

gas cylinder (565).JPG





Specification and Details-----------------------------------------------------------------------------------------------



Water Capacity

Wall

Thickness

Diameter
(mm)

Cylinder

Height

WeightWorking PressureTesting PressureMaterialStandard
2L2.9mmΦ108310mm3.6kg150Bar250Bar37MnISO9809-3
4L4.1mmΦ140373mm6.4kg150Bar250Bar37MnISO9809-3
5L4.1mmΦ140448mm7.6kg150Bar250Bar37MnISO9809-3
6L4.1mmΦ140523mm8.8kg150Bar250Bar37MnISO9809-3
6.7L4.1mmΦ140575mm9.5kg150Bar250Bar37MnISO9809-3
7L4.1mmΦ140603mm9.9kg150Bar250Bar37MnISO9809-3
8L4.1mmΦ140673mm11kg150Bar250Bar37MnISO9809-3
10L4.1mmΦ140838mm13.5kg150Bar250Bar37MnISO9809-3
4.4mmΦ152705mm12.6kg150Bar250Bar37MnISO9809-3
15L4.4mmΦ1521017mm17.7kg150Bar250Bar37MnISO9809-3
Φ159953mm18.9kg



20L5.7mmΦ219698mm27.8kg150Bar250Bar37MnISO9809-3
40L5.3mmΦ2191315mm44kg150Bar250Bar37MnISO9809-3
5.7mm48kg
5.4mmΦ2321156mm54kg150Bar250Bar37MnISO9809-3
5.7mm58kg
5.2mm46kg200Bar300Bar34CrMo4ISO9809-1
5.8mm50kg
47L5.2mmΦ2321370mm52kg200Bar300Bar34CrMo4ISO9809-1
5.8mm56kg
5.4mm52kg150Bar200Bar37MnISO9809-3
6.0mm56kg
50L5.2mmΦ2321450mm56-59kg
(with valve and cap)
200Bar300Bar34CrMo4ISO9809-1
5.8mm
5.4mm150Bar200Bar37MnISO9809-3
6.0mm

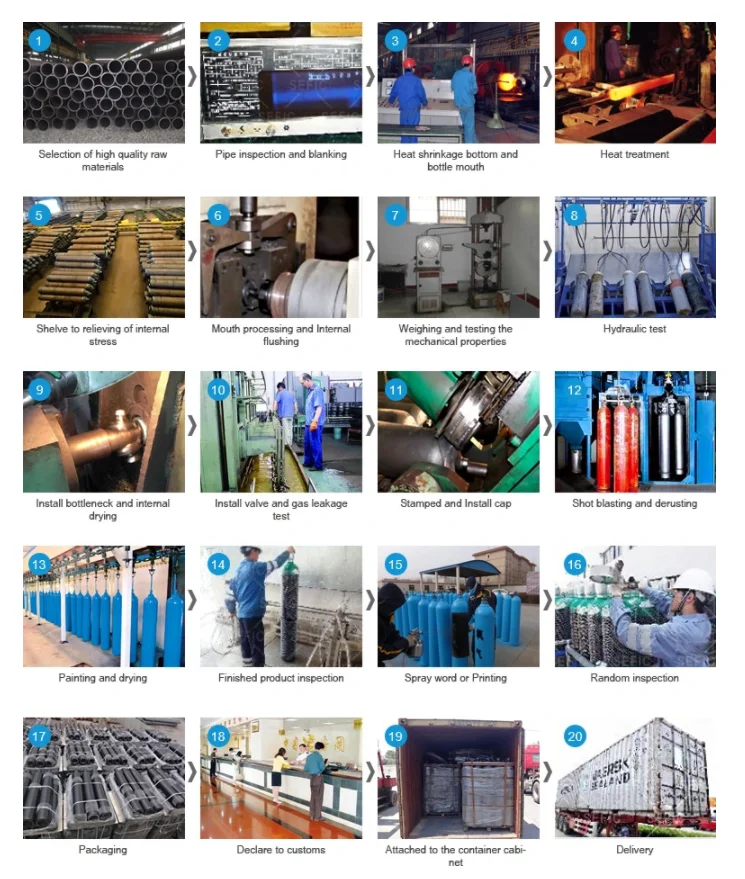

Production Process------------------------------------------------------------------------------------------------------

gas cylinder-Lishan.png

Packing&Shipping------------------------------------------------------------------------------------------------------

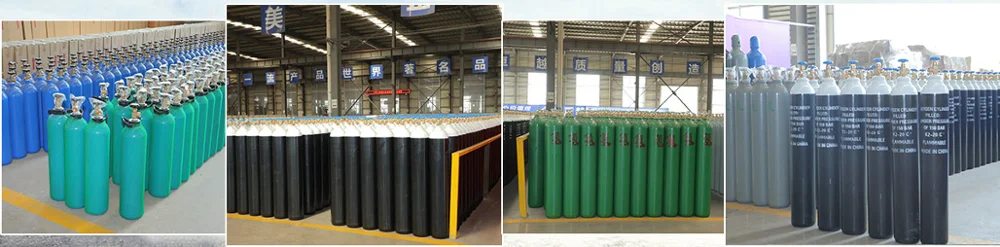

gas cylinder (451).JPG gas cylinder (42)_.JPG

gas cylinder.png
