- Pressure:Low
- Place of Origin:CN;SHN
- Material:Steel
- Use:Oxygen
- Brand Name:lishan
- Color:Blue or as your request
- Water Capacity:40L
- height:1315mm
- Weight:48kg
- Outside Diameter:219mm
- Service Pressure(Bar):150
- Test Pressure(Bar):250
- Thickness:5.7mm
- material:seamless steel
- Valve:QF-2

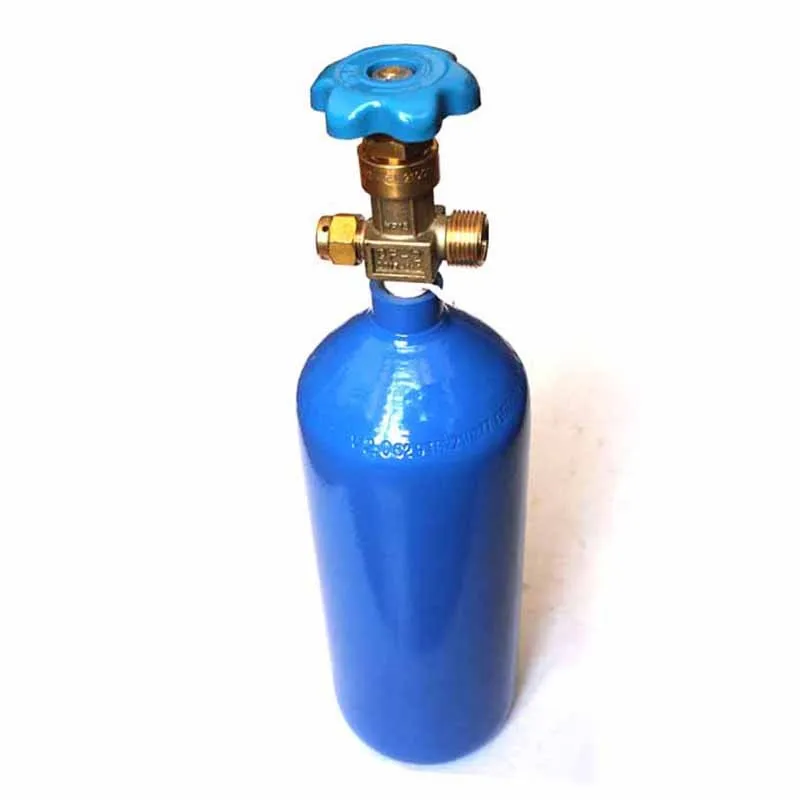

Real PICS !!! 40 L industrial/medical oxygen cylinder bomb seamless steel, empty oxygen cylinder
Seamless steel 40 L industrial gas cylinders portable using advanced technology, through the national certification, in line with international quality standards and safety standards, is widely used in various fields such as industry, laboratory research, medical treatment etc.
Oxygen bottle model | 40L | 15L | 14L | 10L | 8L |
4L |
Height | 1450mm | 956mm | 900mm | 710mm | 540mm | 480mm |
Diameter | 219mm | 159mm | 149mm | 152mm | 152mm | 130mm |
Wall thickness | ≥5.7mm | ≥4.2mm | ≥4.2mm | ≥4.0mm | ≥4.0mm | ≥3.6mm |
Valve | QF-2 | |||||
Material | 37Mn | |||||
Ambient temperature | -20~60℃ | |||||
Nominal working pressure | 15MPa | |||||
Hydraulic test pressure | 22.5MPa | |||||
Airtight test pressure | 15MPa | |||||
Filling medium | Oxygen | |||||
Permanent gas | High pressure liquefied gas | |||||
We will supply customized valves, stampings, words on cylinders. Different purity gases can be supplied with the cylinders together.

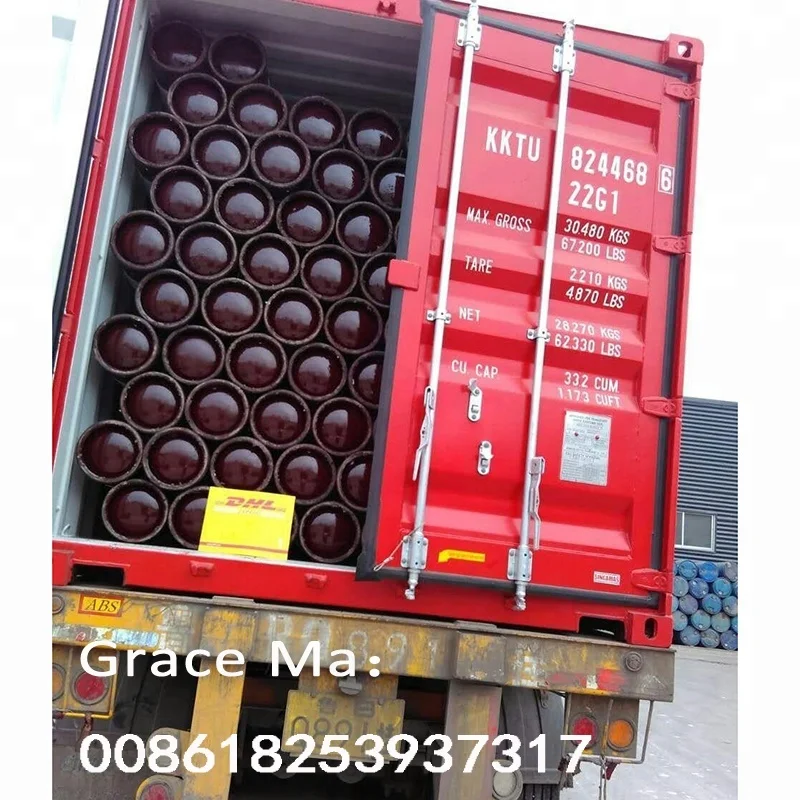

1. Nude packing with protection nets
2. packed in wooden pallets
