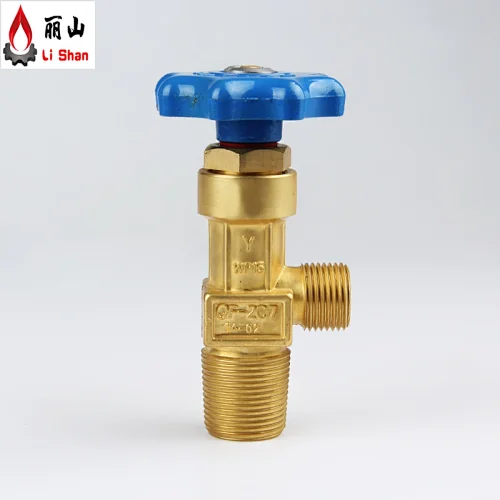

CGA870 valve Medical oxygen valve for medical oxygen cylinder ,oxygen tank valve brass valve,brass coated Cr VALVE
CGA870 valve Medical oxygen valve for medical oxygen cylinder ,oxygen tank valve brass valve,brass coated Cr VALVE
CGA870 valve Medical oxygen valve for medical oxygen cylinder ,oxygen tank valve brass valve,brass coated Cr VALVE

CGA870 valve Medical oxygen valve for medical oxygen cylinder ,oxygen tank valve brass valve,brass coated Cr VALVE

Model NO.
CGA870 valve
Price:
USD 4.50-5.00 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
3000 pieces / Day
Country of Origin:
Qingdao,Shanhai
Quantity:
  • Place of Origin:CN;SHN
  • Material:Brass
  • Brand Name:lishan
  • Model Number:CGA870 valve
  • Power:Manual
  • Pressure:High Pressure
  • Application:General
  • Port Size:PZ27.8
  • Standard or Nonstandard:Standard
  • Media:Gas
  • Structure:Other
  • Temperature of Media:Other

CGA870 valve Medical oxygen valve for medical oxygen cylinder ,oxygen tank valve brass valve,brass coated Cr VALVE






Product Description

cga870 medical oxygen cylinder valve

outlet thread: CGA870,

inlet thread:PZ27.8,3/4-14NGT,PZ19.2

working pressure:15~20MPa

DN:4mm

pressure of safety device:19.5~22.5,26~30MPa(burst pressure)

we accept custom-order

CGA8700.75-16unfCGA870 PZ27.8 36CGA870 PZ19.2 35

Seamless steel cylinder using advanced technology,through the national certification,in line with international quality standards and safety standards,is widely used in various fields such as industry,laboratory research,medical treatment etc

Oxygen bottle Model

40L

15L

14L

10L

8L

4L

Height

1450mm

956mm

900mm

710mm

540mm

480mm

Diameter

219mm

159mm

149mm

152mm

152mm

130mm

Wall thickness

≥5.7mm

≥4.2mm

≥4.2mm

≥4.0mm

≥4.0mm

≥3.6mm

Valve

QF-2

material

37Mn

Ambient temperature

-20~60°C

Nominal working pressure

15MPa

Hydraulic test pressure

22.5MPa

Airtight test pressure

15MPa

Filling media

oxygen



Permanent gas

High pressure liquefied gas
