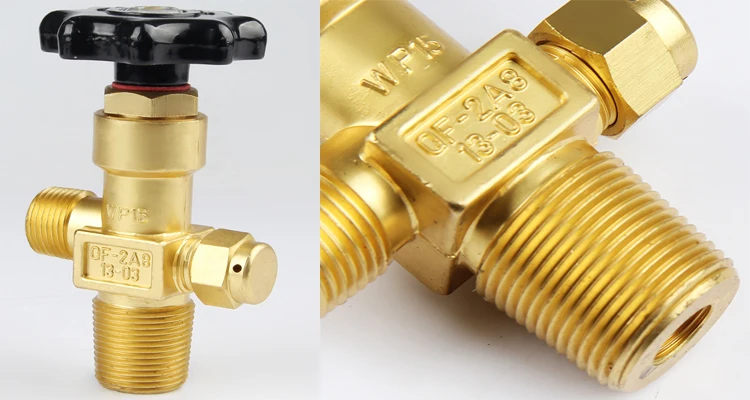

Nominal pressure 15Mpa QF-2A8 carbon dioxide cylinder valve

Model NO.:
QF-2A8
Price:
USD 4.00-8.00 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
5000 pieces / Day
Country of Origin:
QINGDAO, SHANGHAI
  • Type:BALL VALVES
  • Type:Pressure Regulators
  • Application:General
  • Temperature of Media:High Temperature
  • Power:Manual
  • Media:Gas
  • Structure:Control
  • Place of Origin:CN;SHN
  • Brand Name:LISHAN
  • Model Number:QF-2A8
  • Port Size:PZ27.8
  • Product name:cylinder valve
  • Medium:CO2
  • Working pressure:15Mpa
  • Inlet thread:PZ27.8
  • Out thread:W21.8-14-RH-EXT
  • nominal diameter:7mm
  • Packing:as your require
  • material:brass
  • Color:Brass Color
  • MOQ:10 PCS
Product Description





TYPEMEDIUM AVAILABLEWP(Mpa)INLET THREADOUTLET THREADSAFETY DEVICE(Mpa)DN(mm)STRUCTURAL STYLE
QF-2O2  N215PZ27.8G5/821±1.54Valve type
QF-2CO2  N215PZ27.8G5/821±1.54Valve type
QF-2ACO215PZ27.8G5/821±1.57Valve type
QF-15AC2H23PZ39Φ21Clamp95℃±5℃4
QF-2A8CO215PZ27.8W21.8×1/1421±1.54
QF-2PO2  N215PZ27.8G5/821±1.54Valve type
CGA320CO2153/4-14-NGTCGA32021±1.54
CGA540O2  N2153/4-14-NGTCGA54021±1.54





















































































 Cylinder valve refers to the valve installed on the cylinder to control the flow of gas on and off.Also known as"bottle valve".Cylinder valves of different media are generally used.Their common characteristics are manual, simple structure, small size, high strength, working temperature in -40~60℃, material can adapt to the physical and chemical characteristics of the medium and commonly used copper, some with safety relief devices, such as the use of stretch or shear bursting disc and fusible alloy made of safety plug.Cylinder valves are divided into valve type, shaft type, needle type, rubber connection type and diaphragm type.They operate in a pressure range for compressed gases and a temperature range for liquefied gases.





QF-2A8









Packaging & Shipping







_11





 Packaging details: carton packing or as your required

 Packing Port : QINGDAO,SHANGHI,NINGBO
